| 1. |

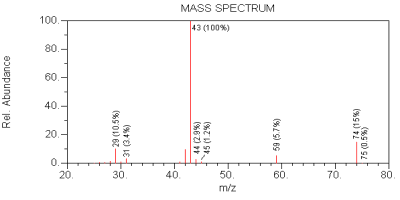

Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
ethyl methanoate
|
|
b)
|
methyl ethanoate
|
|
c)
|
propanoic acid
|
|
d)
|
ethyl ethanoate
|
|
e)
|
2-propenoic acid
|
|
|
|
|
|
|
| 2. |
For this spectrum identify the ion series formed by loss of alkyl fragments.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
15, 29, 43, 57, 71
|
|
b)
|
31, 45, 59, 87, 101
|
|
c)
|
none
|
|
|
|
|
|
|
| 3. |
For this same spectrum, choose the compound that the spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
methyl pentanoate
|
|
b)
|
methyl butanoate
|
|
c)
|
butyl ethanoate
|
|
d)
|
ethyl butanoate
|
|
e)
|
ethyl pentanoate
|
|
|
|
|
|
|
| 4. |
Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
isopropyl ethanoate
|
|
b)
|
butyl formate
|
|
c)
|
ethyl ethanoate
|
|
d)
|
ethyl propionate
|
|
e)
|
ethyl butanoate
|
|
|
|
|
|
|
| 5. |
Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
ethyl butanoate
|
|
b)
|
ethyl pentanoate
|
|
c)
|
methyl 3-methylbutanoate
|
|
d)
|
ethyl 2-methylpropanoate
|
|
e)
|
methyl butanoate
|
|
|
|
|
|
|
| 6. |
Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
ethyl pentanoate
|
|
b)
|
methyl butanoate
|
|
c)
|
ethyl butanoate
|
|
d)
|
2,2-dimethyl propanoic acid, methyl ester
|
|
e)
|
butyl ethanoate
|
|
|
|
|
|
|
