| 1. |
How many oxygens are in the molecular ion peak in this spectrum?
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
0
|
|
b)
|
1
|
|
c)
|
2
|
|
|
|
|
|
|
| 2. |
For this same spectrum, choose the compound that the spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
butanal
|
|
b)
|
propanal
|
|
c)
|
2-propenal
|
|
d)
|
methoxy-ethene
|
|
e)
|
ethanediol
|
|
|
|
|
|
|
| 3. |

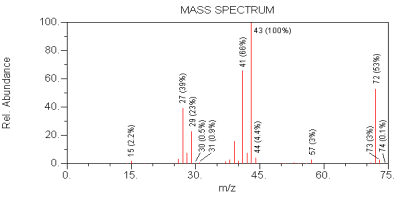

Find the alkyl ion series in the spectra below. (Check the hint!)
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
15, 29, 43
|
|
b)
|
29, 43, 57
|
|
c)
|
none
|
|
|
|
|
|
|
| 4. |
Find the alkyl LOSS ion series in the same spectra shown below. (Check the hint!)
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
15, 29, 43
|
|
b)
|
29, 43, 57
|
|
c)
|
none
|
|
|
|
|
|
|
| 5. |
For this same spectrum, choose the compound that the spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
2-propenal
|
|
b)
|
2-methyl propanal
|
|
c)
|
pentanal
|
|
d)
|
2-oxo-propanal
|
|
e)
|
butanal
|
|
|
|
|
|
|
| 6. |

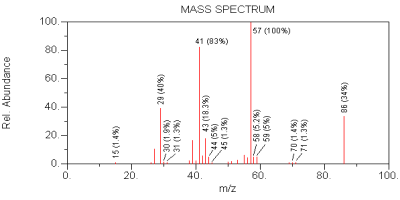

Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
hexanal
|
|
b)
|
3-methyl butanal
|
|
c)
|
pentanal
|
|
d)
|
2-methyl propanal
|
|
e)
|
2,2-dimethyl propanal
|
|
|
|
|
|
|
| 7. |

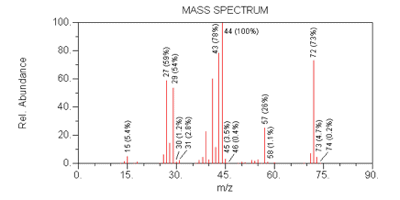

Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
2-methyl propanal
|
|
b)
|
butanal
|
|
c)
|
2-oxo-propanal
|
|
d)
|
2-propenal
|
|
e)
|
pentanal
|
|
|
|
|
|
|
| 8. |

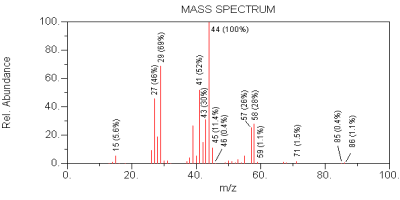

Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
2,2-dimethyl propanal
|
|
b)
|
hexanal
|
|
c)
|
2-oxo-propanal
|
|
d)
|
3-methyl-butanal
|
|
e)
|
pentanal
|
|
|
|
|
|
|
