| 1. |

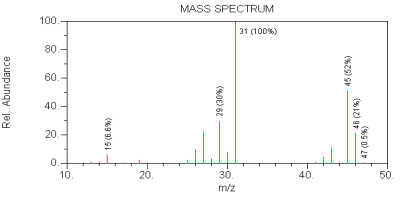

Identify the molecular ion in this spectrum.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
45
|
|
b)
|
46
|
|
c)
|
47
|
|
|
|
|
|
|
| 2. |
For this same spectrum, choose the compound that the spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
formic acid
|
|
b)
|
1-propanol
|
|
c)
|
ethanol
|
|
d)
|
methanol
|
|
e)
|
isopropyl alcohol
|
|
|
|
|
|
|
| 3. |

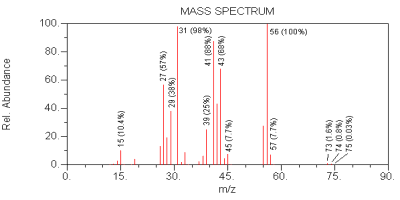

Find the alkyl ion series in the spectrum below. (Check the hint!)
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
15, 29, 43, 57
|
|
b)
|
31, 45
|
|
c)
|
none
|
|
|
|
|
|
|
| 4. |
Find the alkyl LOSS ion series in the same spectra shown below. (Check the hint!)
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
15, 29, 43, 57
|
|
b)
|
31, 45
|
|
c)
|
none
|
|
|
|
|
|
|
| 5. |
For the same spectrum shown in the previous two questions, choose the compound that the spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
2-methyl-2-propanol
|
|
b)
|
1-butanol
|
|
c)
|
2-butanol
|
|
d)
|
1-pentanol
|
|
e)
|
2-methyl-1-propanol
|
|
|
|
|
|
|
| 6. |
Identify the molecular ion in this spectrum.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
70
|
|
b)
|
71
|
|
c)
|
87
|
|
d)
|
88
|
|
|
|
|
|
|
| 7. |
For the same spectrum, choose the compound that the spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
1-hexanol
|
|
b)
|
1-pentanol
|
|
c)
|
2-methyl-2-butanol
|
|
d)
|
2-pentanol
|
|
e)
|
1-butanol
|
|
|
|
|
|
|
| 8. |

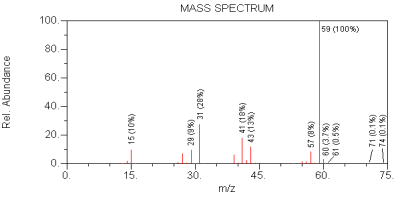

Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
2-methyl-2-butanol
|
|
b)
|
2-methyl-2-propanol
|
|
c)
|
2-butanol
|
|
d)
|
1-butanol
|
|
e)
|
2-methyl-1-propanol
|
|
|
|
|
|
|
| 9. |

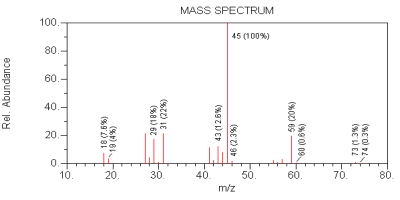

Choose the compound that this spectrum represents.
|
|
|
|
|
|
|
Click on image to enlarge
|
|
a)
|
2-pentanol
|
|
b)
|
2-methyl-2-propanol
|
|
c)
|
1-butanol
|
|
d)
|
2-methyl-1-propanol
|
|
e)
|
2-butanol
|
|
|
|
|
|
|
